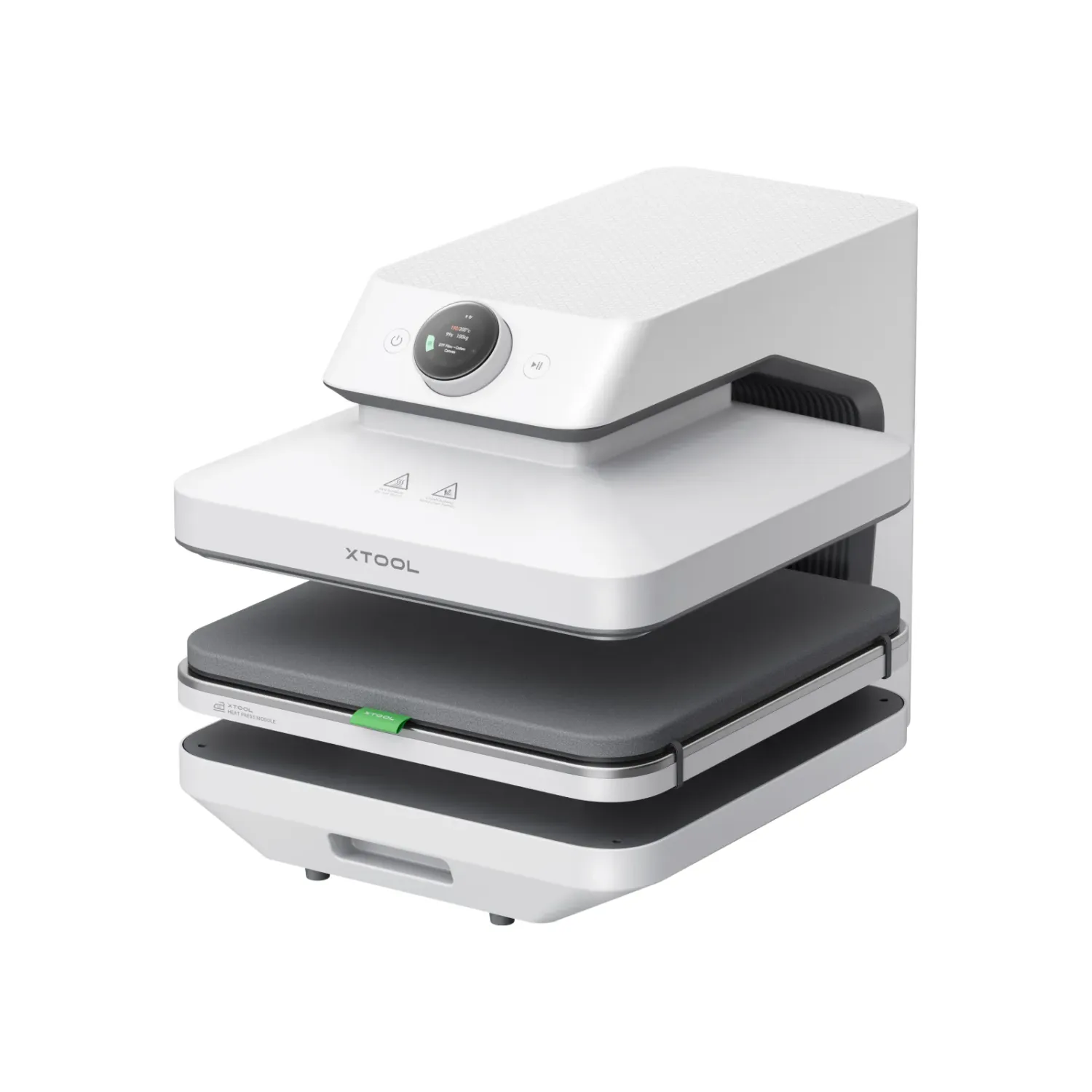

xTool WonderPress 3D Auto Heat Press

• 3-in-1 Modularity: Swap between an auto press, vacuum former, and craft oven.
• Pro Heat Press: 100kg auto-pressure and 7.5cm clearance for thickest hoodies.
• 3D Vacuum Form: Sublimate curved objects or clone physical molds in seconds.
• Safe Craft Oven: Built-in filter ensures smoke-free indoor DTF curing.
• Smart Workflow: Intuitive dial and app presets make parameter setup effortless

Specifications

• Heat Press Module (Main Unit)

  Heat Platen Size

  15" × 15" (380mm × 380 mm) Large Platen

  Temperature Range

  80-210 °C (176-410 °F)

  Pressure Range

  44-220 lbs (20-100 kg) Precision Control

  Time Range

  1-999 s

  Input Voltage & Rated Power

  AC 100-120 V, 1150-1650 W, 50/60 Hz

  Physical Dimensions & Weight

  16.5'' × 21.6'' × 16.5" (418 mm × 549 mm × 410mm) | 48.5 lbs (22 kg)

  3D Form Module

  Suction Power

  Max -90 kPa (Industrial-grade Vacuum)

  Vacuum Forming Area

  Up to 8" × 10" (203 × 254 mm) Film Sheets

  Max Forming Height

  Up to 3.5" (90 mm)

  Max Sublimation Area

  Up to 4.8" × 9" (122 mm × 229 mm) Objects

  Physical Dimensions & Weight

  20.5'' × 16.1" × 4.2" (522 mm × 410 mm × 108mm) | 15.9 lbs (7.2 kg)

  Craft Oven Module

  DTF Curing Area

  Up to 17" × 17" (432 mm × 432 mm) DTF Films

  Chamber Dimensions (W×D×H)

  15.6" × 6.2" × 3.1" (398 mm × 158 mm × 80 mm)

  Air Filtration

  Built-in 3-Layer Filter (H11+ Carbon + H13 HEPA)

  Physical Dimensions & Weight

  18.3'' × 18.3" x 5.5'' （465 mm × 465 mm × 140.7 mm) | 9.7 lbs (4.4 kg)

  Smart Control & Safety

  Display & Controls

  1.8" (45.7 mm) Vivid Screen + Intuitive Rotary Knob

  Software Support

  xTool Studio App (Massive Cloud Presets Library)

  Built-in Custom Presets

  35 Smart Built-In Custom Presets for Instant Offline Creation

  Safety Features

  Auto-Standby, Slide-Out Design (Away from Heat Source)

  Outlook & Storage

  Body Material

  PC/PBT

  Color White

  Storage Temperature

  -4 °F - 140 °F (-20 °C - 60 °C)
