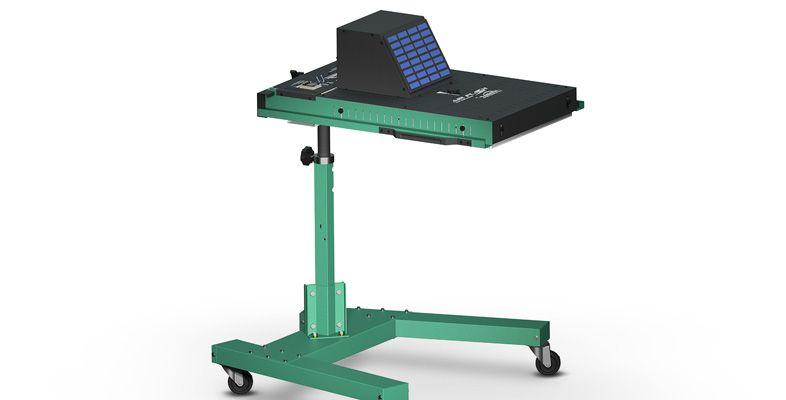

Vastex AirFlash Cure Unit
The Vastex AirFlash™ Flash Cure Unit combines infrared heating with forced air to cure the ink while cooling the garment to avoid shrinkage, melting and burning of Nylon, polyester, Dazzle cloth, Spandex and other heat-sensitive fabrics.
It features a 140 cfm (238 m 3 /h) blower with filtered air intake that can distribute clean, heated air uniformly across delicate fabrics such as nylon. For flashing of regular fabrics, the air flow can be diverted to cool the outer skin.
Adjustable FORCED AIR System designed to protect delicate fabrics during Flash Curing or both Plastisol and Waterbase inks. Speeds the drying time for Waterbase & Discharge inks 5x faster than regular Flash units.
Included features:
Floor Stand: STANDARD with Locking Wheels Electrical:
240 volts
RELIABLE: 15-Year Heater Warranty
POWERFUL Heater, sizes: 18 in. (46 cm) square unit with 3,500 watt/240V heater, or 18 x 24 in. (46 x 61 cm) unit with 4,300 watt/240V heater), both with 140 CFM (238 m 3 /h) blower
USER FRIENDLY with Diagnostic indicator lights and fully-adjustable digital heat control and air flow
VERSATILE design for Air feature:
Select air only, full heat and air, or modulate air velocity and heat. Works great with plastisol, water-based inks, discharge on delicate garments, and more
SMART Design: Adjustable heat shield helps maintain heater surface consistency and Large filtered air intake delivers clean air to heater
ADJUSTABLE: Temperature (digital), air speed, heat shield, head height and level
EFFICIENT Heater Design with High wattage/close coil density heater, cooling fan and air curtain for edge-to-edge uniformity
FASTER than standard Flash units, Flashes plastisol in as little as 4 seconds
STANDARD FEATURES
- Digital Heat Control
- 15 Year Heater Warranty
- 3 Year Bumper to Bumper Warranty
- Head rotates 360°
- Convenient heavy-duty side handles
- Adjustable height
- Anti-rust treatment on all painted steel
AirFlash RAD-1818
18 in. (46 cm) square with 3,500 watt/240V heater
AirFlash RAD-1824
18 x 24 in. (46 x 61 cm) with 4,300 watt/240V heater
Electrical Plug: NEMA 6-20P (RAD-1818) and NEMA L6-30P
RAD-18-240
RAD-1824-240
