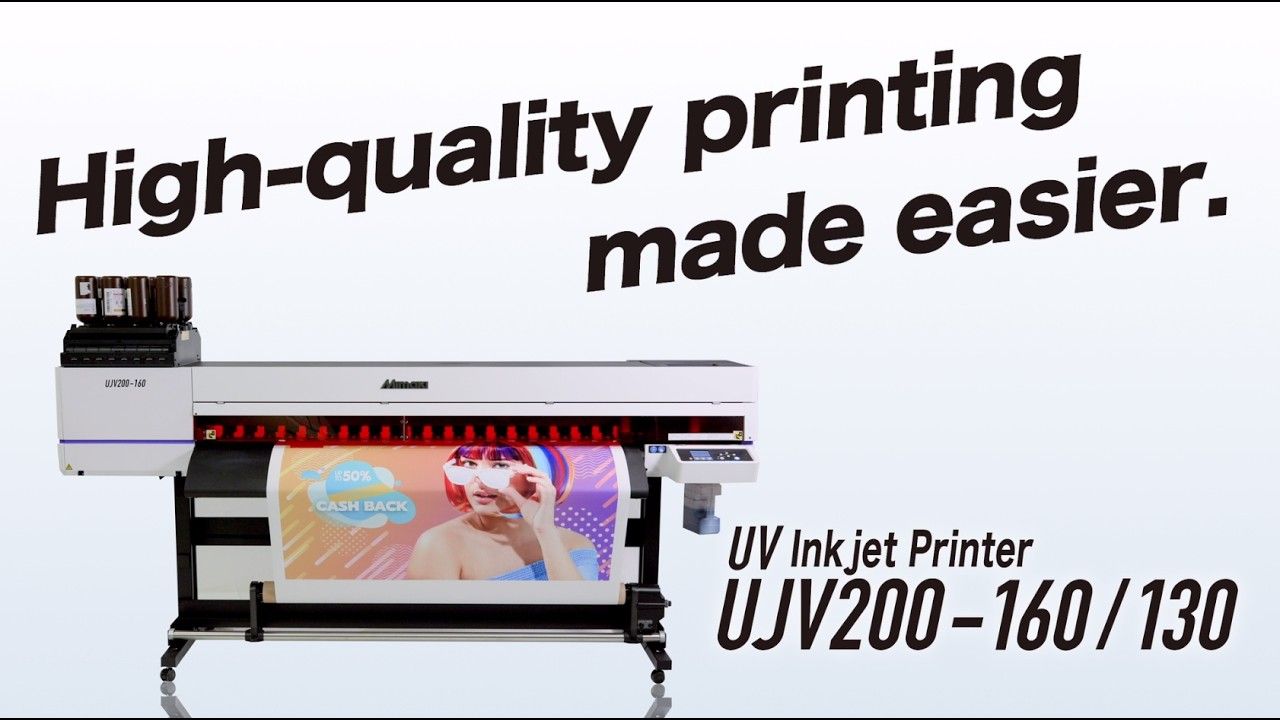

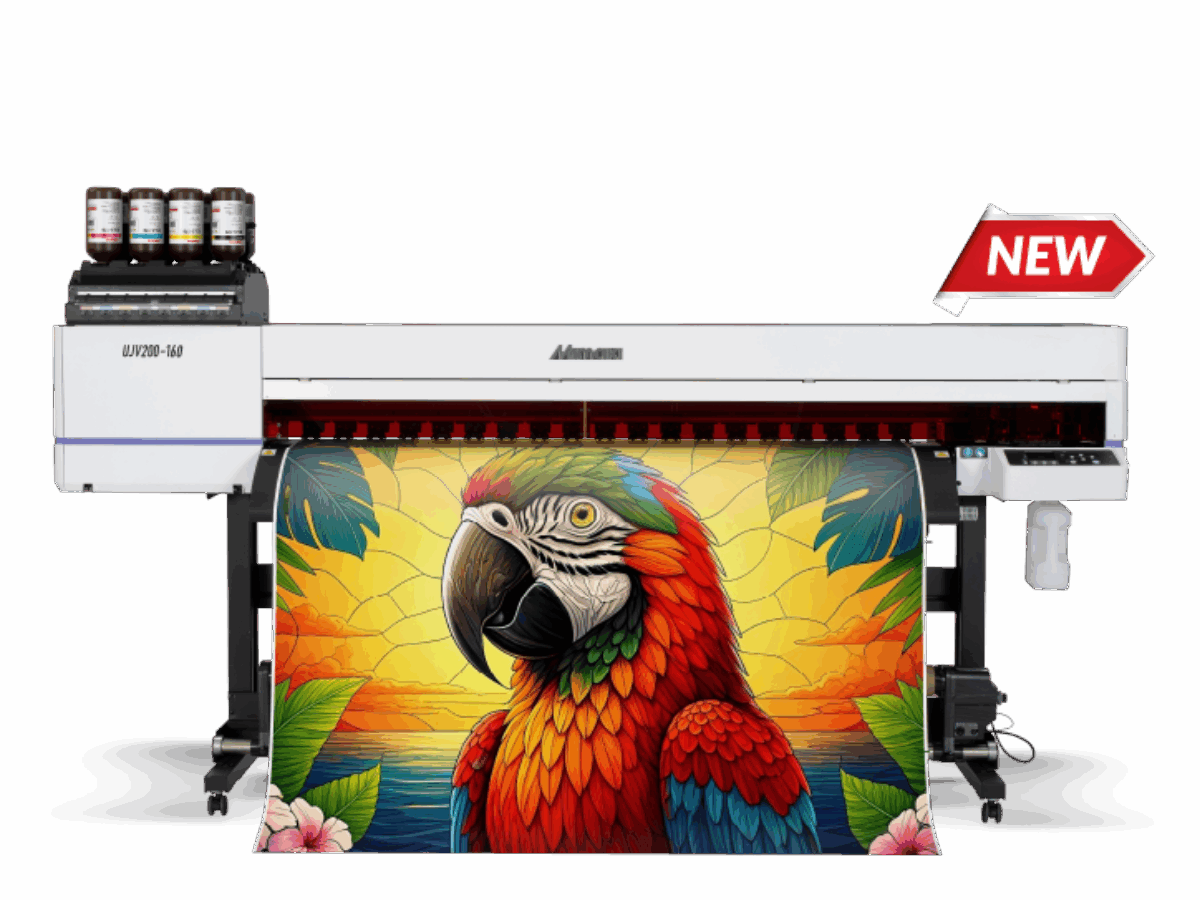

Mimaki UJV200-160 Wide Format UV Printer
Mimaki UJV-200-160 Series
The UJV200-160 Series is a highly versatile printer equipped with UV ink capability that can Print to complete a variety of different application requirements. This high-precision machine accommodates all types of production.
Maximum Printing capacity:
63" inches
Maximum Media width: 63.8" inches
-Easily produce indoor and outdoor prints on a large selection of media with ‘one printer to do it all’ versatility in a small footprint.
-Enjoy outstanding quality and productivity, plus the industry’s best outdoor durability at an attractive price point.
-Print a wide range of applications using this complete system with print & cut device, software, and a range of inks.
-Easy to use with paired RIP software for extreme accuracy when creating instant decals and large wall graphics.
-Outstanding quality and productivity at an attractive price point.
-Mimaki Core Technologies deliver exceptional results, economically, and with maximum productivity.

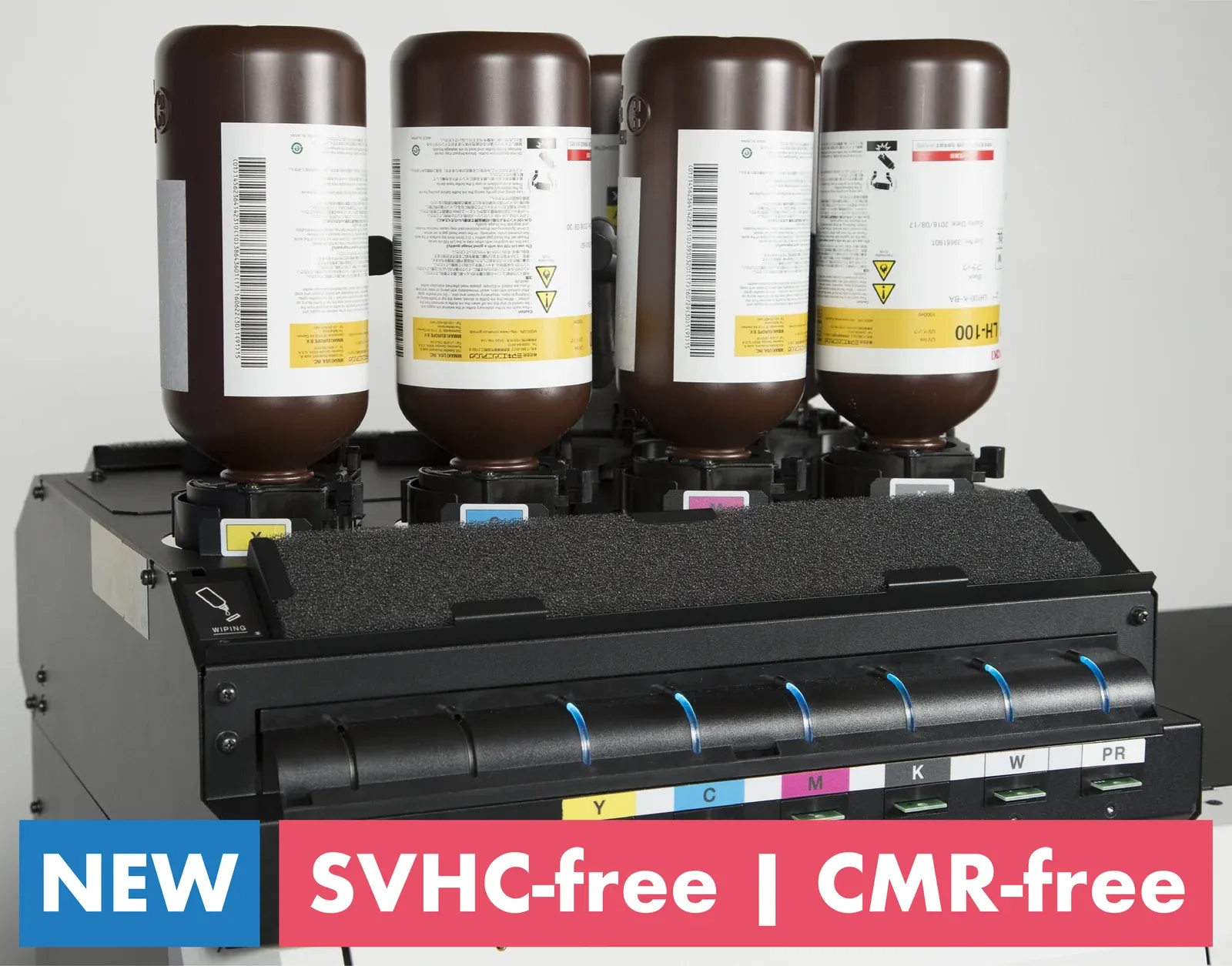

Mimaki ELS-170 UV Ink series is available for UJV-200-160:
ELS170 Ink Series: CMYK+WW-CL-CL
| UV ink (ELS170) | Cyan | Magenta | Yellow | Black | Clear | White |
|---|---|---|---|---|---|---|
| 1L Bottles /chip | ELS17-C-BA | ELS17-M-BA | ELS17-Y-BA | ELS17-K-BA | ELS17-W-BA | ELS17-CL-BA |
Additional Mimaki UJV-200 Specifications:
| Printhead: | (1) On-demand piezo print head (single) |
| Print resolution: | X: 600,1200 dpi | Y: 600,900,1200 dpi |
| Print speed:
Color mode: CMYK x2 |
183 sqft/hr (17 sqm/hr) |
| Maximum Print Area: | UJV200-160: 63" inches |
| Max Media Thickness: | up to: 0.08"in (2mm) |
| Ink Type: | UV inks:
ELS170 (CMYK+W-CL) |
| Interface: | USB 2.0 Hi-speed | Ethernet 1000 BASE-T |
| Power Supply: | AC (120V × two 50/60Hz±1Hz |
| Operational Environment: | Temperature: 68° – 86° F (20-30° C) |
| Dimensions (W × D × H) | - U JV200-160: 109in x 29.5 in x 54in (277cm W x 75cm D x 137cm H) |
| Weight: | UJV200-160: 352.6 lbs. (160 kg) |
