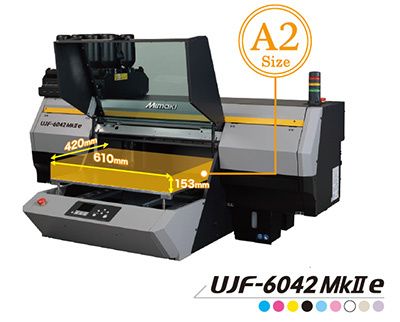

Powerful Personalization on Demand - Mimaki UJF-6042 Mk-IIe model is Designed to bring your ideas to reality, these professional tools deliver consistent quality for any level of production. You can create specialty items, awards, personalized products, component pieces and more. Excellent for printing on: Plastic, Wood, Metal, Leather, Glass, and many other substrates.
Printing Specifications: -Max Print area:
16.5” x 24”; up to 6” thick -Covered UV shield:
Enclosed print area reduces dust and UV protection -Included RIP software:
Rasterlink7 with Jig Printing functionality. -Prints effects:
Raised effects and braille capable -Enhanced Auto Maintenance Features -Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED Rigid and Flexible
inks
Mimaki UV Inks series:
Rigid substrates:
LH-100
Flexible substrates:
LUS-120
Mimaki UJF UV Flatbed Printer OPTIONS:
Mimaki Kebab
Bottle cylindrical printing option
Machine Stand
Table Floor stand for Printer
De-Odorize unit
Removes odors in offices & stores
Equipment Specifications:
Print Heads:
(4)
On-demand Piezo, Staggered Array
Print Resolution:
Max:
1200 x 1200 dpi
Print Speed 4c Mode: CMYK W-CL
37.9 ft2/hr (3.5m2/hr)
Max Print Area:
16.5″ x 24″ (600 x 420 mm)
Max media area:
14” x 18”
Max Media Thickness:
up to 6.02″ (153 mm)
Max Media Weight:
17.0 lbs. (7.5 kg)
Ink Types:
Rigid:
LH-100
Flexible: LUS-120 / LUS-150
Interface:
Ethernet 1000BASE-T / USB2.0 Hi-speed
Power Supply:
Single-phase AC110v-240v, 50/60Hz ±1Hz
Equipment Weight & Dimensions:
Dimensions: (W x D x H)
66" x 51" x 34"
Unit Weight:
331 lbs
Creating JIGs fo your UJF - Tips, Tricks & Technique:
Installing the Kebab option for cylindrical printing on UJF UV Flatbed Printer:
