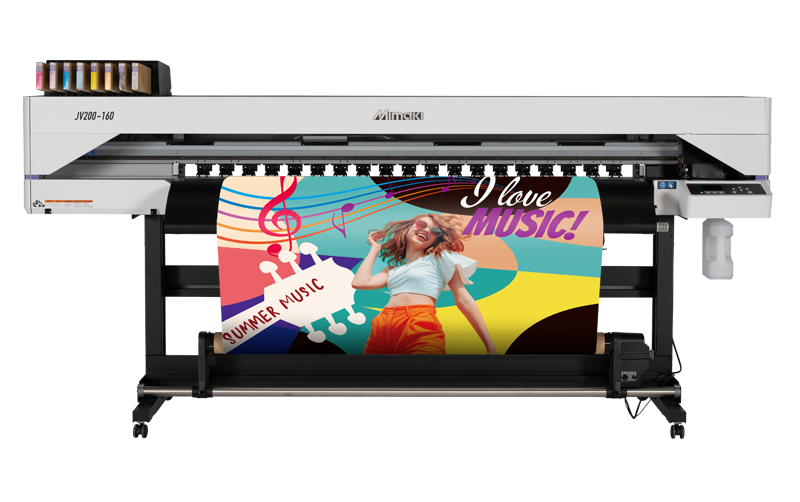

Mimaki JV200-160 Wide Format Printer
Mimaki JV200-160 Wide Format Printer
- Available Size:
64” with print speeds up to 183sq/ft per hr.
- Eco-solvent:
4 color CMYK (x2) SS-22
- NEW Dot Adjustment System(DAS) automatically aligns to ensure consistent quality and repeatability
- Nozzle Check Unit (NCU) -
automatically monitors printhead performance and detects clogged nozzles
- Nozzle Recovery System (NRS) -
automatically substitutes unproductive nozzles, avoiding downtime and poor image quality
- Included RIP software:
RasterLink7
Mimaki JV200-160 Applications:
JV200-160 Eco-Solvent Wide Format
Specifications:
-Print Heads:(1) Single, Piezo Print Head (on-Demand)
-Print Resolution: (X)
600 & 1200 dpi - (Y)
600, 900 & 1,200 dpi
-Print Speed:
183 sq/ft per Hour (17 sqm/hr)
-Max Print Area:
63.4" wide (161cm)
-Max Media width:
63.8" wide (162cm)
-Ink Type:
Mimaki SS21 Eco-Solvent
-Interface connectivity:
USB 2.0 Cable or Ethernet 1k Base-T
-Power Supply:
120volts
-Recommended Environment:
68F to 86F
-Weight & Dimensions:
310 lbs - 109" x 30" x 54"
Eco-Solvent Inks for JV200-160
| Solvent ink (SS22) | Cyan | Magenta | Yellow | Black |
|---|---|---|---|---|
| 440ml Eco-Cartridge | SS22-C-44 | SS22-M-44 | SS22-Y-44 | SS22-K-44 |
Introducing the Solution to your Wide Format Production:
Mimaki RasterLink 7 - Software Training Video:
