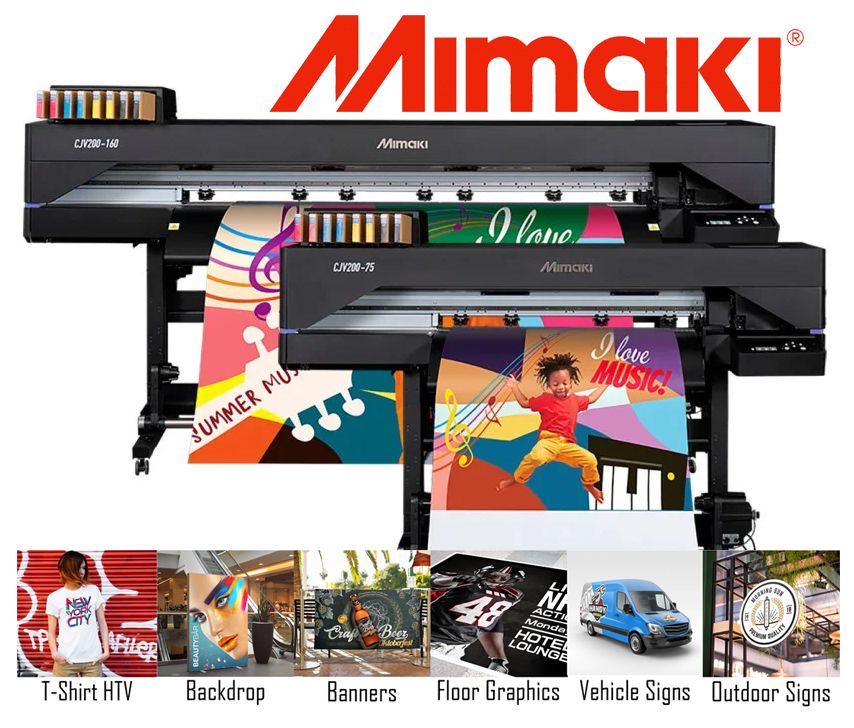

Mimaki CJV200-160 Wide Format - Print & CUT Plotter
Mimaki CJV-200-160 Series
The CJV200-160 Series is a highly versatile printer equipped with eco-solvent capability that can Print & Cut to complete a variety of different application requirements. This high-precision machine accommodates all types of production.
Maximum Printing capacity:
63" inches
Maximum Media width: 63.8" inches
-Easily produce indoor and outdoor prints on a large selection of media with ‘one printer to do it all’ versatility in a small footprint.
-Enjoy outstanding quality and productivity, plus the industry’s best outdoor durability at an attractive price point.
-Print a wide range of applications using this complete system with print & cut device, software, and a range of inks.
-Easy to use with paired RIP software for extreme accuracy when creating instant decals and large wall graphics.
-Outstanding quality and productivity at an attractive price point.
-Mimaki Core Technologies deliver exceptional results, economically, and with maximum productivity.
-Select from three model widths to suit your production needs.
Eco-Solvent Ink series available for Mimaki CJV-200-160:
SS22 Ink Series: CMYK ( Extended gamut: Lk, Lc, Lm & Or )
SS21 Ink Series CMYK ( Extended gamut: Lk, Lc, Lm & Or )
| Eco-Solvent ink (SS22) | Cyan | Magenta | Yellow | Black |
|---|---|---|---|---|
| 440ml Cartridges | SS22-C-44 | SS22-M-44 | SS22-Y-44 | SS22-K-44 |
| 600ml Ink bags | BS4-C-60 | BS4-M-60 | BS4-Y-60 | BS4-K-60 |
Mimaki CJV-200 Specifications:
| Printhead: | (1) On-demand piezo print head (single) |
| Print resolution: | X: 600,1200 dpi | Y: 600,900,1200 dpi |
| Print speed:
Color mode: CMYK x2 |
183 sqft/hr (17 sqm/hr) |
| Maximum Print Area: | CJV200-160: 63" inches |
| Max Media Thickness: | up to: 0.04"in (1mm) |
| Ink Type: | Eco-Solvent inks:
SS-22 (C, M, Y & K) |
| Interface: | USB 2.0 Hi-speed | Ethernet 1000 BASE-T |
| Power Supply: | AC (120V × two 50/60Hz±1Hz |
| Operational Environment: | Temperature: 68° – 86° F (20-30° C) |
| Dimensions (W × D × H) | - CJV200-160: 109in x 29.5 in x 54in (277cm W x 75cm D x 137cm H) |
| Weight: | CJV200-160: 308.6 lbs. (140 kg) |
Mimaki RasterLink 7 - Software Training Video:
